self drilling screw

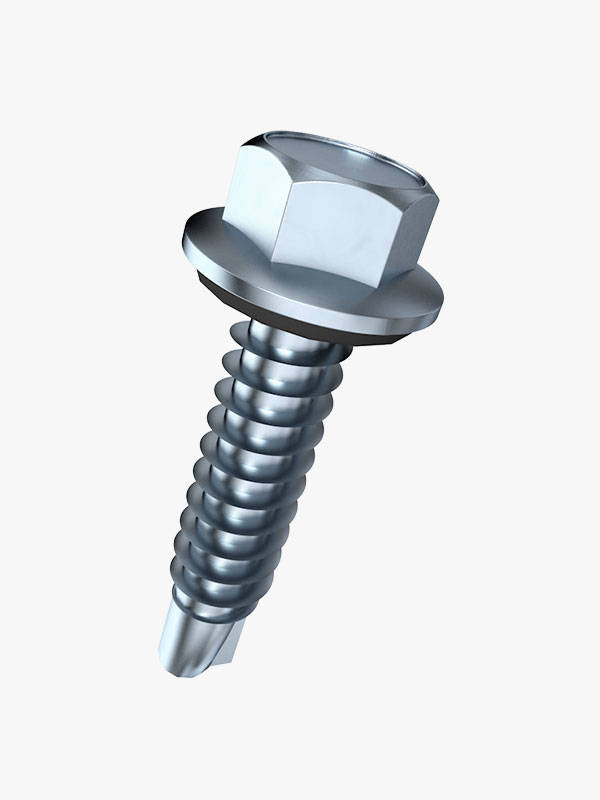

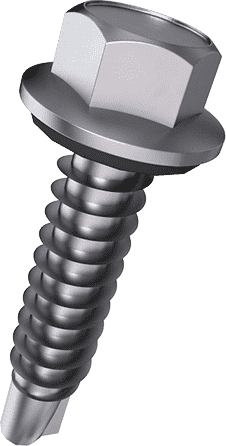

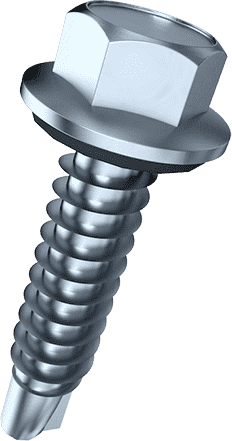

Hex Flange Head Self-Drilling Screw
Application of Hex Flange Head Self Drilling Screws
• Roof deck to steel framing • Accessories to steel framing
 |
Black Phosphated |
|---|---|
 |
White Blue Zinc Plated |
 |
Yellow Zinc Plated |
 |
Nickel Plated |
 |
Ruspert |
|---|---|
 |
Dacromet |
 |
Hot Dip Galvanized |

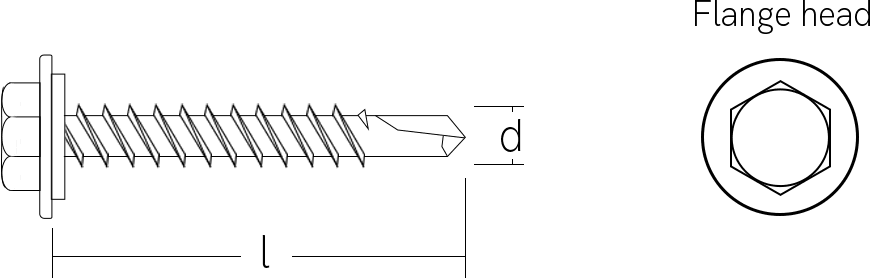

| d: M4.2-M6.3 point: #2, #3, #4, #5 Application thickness: point #2 < 2 mm point #3 < 5 mm point #4 < 8 mm point #5 < 12 mm |
| Size | 4.2x | 4.8x | 5.5x | 6.3x |
|---|---|---|---|---|
| (mm) |
13
16 19 25 32 38 |
13
16 19 25 32 38 45 50 |
19
25 32 35 38 41 45 50 55 63 65 75 80 90 100 115 125 135 150 165 |
19
25 32 38 41 50 63 75 80 90 100 115 125 135 150 165 |
| #8x | #10x | #12x | #14x | |
|---|---|---|---|---|
| (inch) |
1/2"
5/8" 3/4" 1" 1-1/4" 1-1/2" |
1/2"
5/8" 3/4" 1" 1-1/4" 1-1/2" 1-3/4" 2" |
3/4"
1" 1-1/4" 1-3/8" 1-1/2" 1-5/8" 1-3/4" 2" 2-1/8" 2-1/2" 3" 3-1/5" 3-1/2" 4" 4-1/2" 5" 5-2/5" 6" 6-3/5" |
3/4"
1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 3-1/5" 3-1/2" 4" 4-1/2" 5" 5-2/5" 6" 6-3/5" |
Color box
White box
Brown boxAbout delivery
For Hex Flange Head Self Drilling Screw orders with a total order of less than 30 tons, if there are no special circumstances, we will ship within 20 days after ordering
Packaging details
1. We have several sizes of packing dimensions, can be 20kg or 25kg per carton.
2. For large orders, we can design specific sizes of boxes and cartons.
3. Normal Packing: 1000pcs/500pcs/250pcs per small box. then small boxes into cartons.
4. Can provide special packings as middle east clients requests.
Q: What is the MOQ for Hex Flange Head Self Drilling Screws ?
A: Our screw MOQ is usually 1 ton per size.
Q: Can we print our own logo on packaging or Hex Flange Head Self Drilling Screws?
A: Yes, packing and Hex Flange Head Self Drilling Screws we can make according to your requirements.
Q: How long is the delivery time for Hex Flange Head Self Drilling Screw?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your payment term?
A: Generally, 30% T/T in advance ,balance before shippment or against B/L copy.
Q: Are you trading company or Hex Flange Head Self Drilling Screw manufacturer?
A: We are direct Hex Flange Head Self Drilling Screw manufacturer, who owns production lines and workers. No need to worry about extra charges by the middle man or trader.
Hex Flange Head Self Drilling Screw: The Ultimate Fastening Solution
When it comes to fastening materials securely and efficiently, the Hex Flange Head Self Drilling Screw stands out as an exceptional choice. At SHIMAI HARDWARE, we specialize in manufacturing high-quality screws that cater to a variety of industrial and construction needs. Whether you're working on metal, wood, or composite materials, our Hex Flange Head Self Drilling Screws are engineered to provide robust and reliable performance.
What is a Hex Flange Head Self Drilling Screw?
A Hex Flange Head Self Drilling Screw combines the functionality of a drill bit and a screw into one convenient tool. This innovative design allows it to drill its own hole as it is driven into the material, eliminating the need for a pre-drilled hole. The hex flange head provides a wider bearing surface which distributes the load and reduces the risk of damage to the material being fastened.
Key Features of Hex Flange Head Self Drilling Screws
Self-Drilling Capability: The sharp tip of these screws can easily penetrate materials such as metal and wood, reducing installation time and labor costs.
Hex Flange Head Design: The hex head allows for easy driving using a wrench or socket, providing better control and torque.
Enhanced Holding Power: The flange under the head acts like a washer, distributing the load over a larger area and increasing the screw's holding power.
Durability and Strength: Made from high-quality steel, our screws are designed to withstand harsh conditions and heavy loads, ensuring long-lasting performance.
Applications of Hex Flange Head Self Drilling Screws
Hex Flange Head Self Drilling Screws are incredibly versatile and are used in a wide range of applications including:
Metal Roofing and Siding: Ideal for fastening metal panels to steel or wood structures.
HVAC Systems: Used in the assembly and installation of heating, ventilation, and air conditioning systems.
Automotive Industry: Essential for securing various components in vehicles, providing strong and reliable joints.
General Construction: Perfect for a variety of construction tasks where secure fastening is critical.
Benefits of Using SHIMAI HARDWARE's Hex Flange Head Self Drilling Screws
Efficiency: Our self-drilling screws save you time by combining drilling and fastening into a single step.
Reliability: With a focus on quality, our screws offer consistent performance, reducing the likelihood of failures and ensuring project integrity.
Cost-Effective: The durable construction and efficient design of our screws help lower overall project costs by minimizing the need for additional tools and labor.
Wide Range of Sizes: We offer a variety of sizes to suit different applications, ensuring you get the perfect fit for your specific needs.
How to Choose the Right Hex Flange Head Self Drilling Screw
Selecting the right screw for your project involves considering several factors:
Material Thickness: Ensure the screw length and drill point are suitable for the thickness of the material you are fastening.
Environmental Conditions: For outdoor projects, opt for screws with corrosion-resistant coatings.
Load Requirements: Choose screws with appropriate tensile and shear strength for your specific application.
Why Choose SHIMAI HARDWARE?
At SHIMAI HARDWARE, we are committed to delivering products that meet the highest standards of quality and performance. Our Hex Flange Head Self Drilling Screws are manufactured using advanced techniques and stringent quality control processes. We understand the critical role that fasteners play in construction and manufacturing, and we strive to provide solutions that ensure safety, efficiency, and reliability.
Conclusion
In conclusion, the Hex Flange Head Self Drilling Screw is an indispensable tool for various fastening applications. Its unique design and superior performance make it a preferred choice for professionals in the construction, automotive, and HVAC industries. By choosing SHIMAI HARDWARE, you are investing in top-quality screws that will enhance the efficiency and reliability of your projects. Explore our range today and experience the difference of working with premium fastening solutions.
