titanium bolt
| Property | Value / Specification |
|---|---|
| Material | Gr1(TA1) | Gr2(TA2) | Gr3(TA3) | Gr4 (TA4) | Gr5(TC4) | Gr7(TA9) | Gr11 | Gr12 | Gr23 |
| Standard | DIN / ISO / ASME, etc. |
| Surface Finish | Natural Mill Finish, Bead Blasted (Matte), Anodized (Color coding available) |
| Strength Grade | Please contact us |
| Head Type | We offer tapered, socket cap, flanged hex head, drilled race spec, countersunk, and dome head bolts, nuts, and washers， etc. |
| Manufacturing process | We manufacture in a single process on multi axisCNC machining centres, which includes thread rolling. |
| Why Choose Titanium Bolts? | Titanium bolts offer superior performance in demanding applications: 1.Weight Reduction: Achieve significant weight savings without compromising strength 2.Corrosion Resistance: Excellent resistance to saltwater, chlorine, and industrial chemicals 3.Fatigue Resistance: Superior performance under cyclic loading conditions 4.Temperature Stability: Maintain mechanical properties across wide temperature ranges 5.Longevity: Extended service life reduces maintenance and replacement costs |
| Common Applications | Aerospace: Aircraft structures, engine components Automotive Racing: High-performance engines, chassis, brake systems Marine: Boat fittings, underwater equipment, saltwater environments Medical: Surgical instruments, implants, diagnostic equipment Cycling: Bicycle frames, components, and accessories Industrial: Chemical processing, oil & gas, power generation |
Titanium Bolts

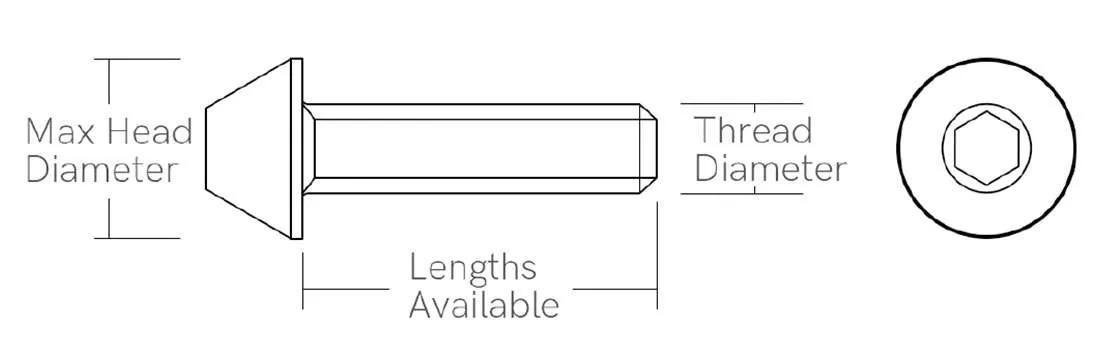

Tapered Socket Cap
| Thread Diameter |
Pitch | Allen Key Drive |
Max Head Diameter |
Lengths Available (mm) |
| M3 | 0.50mm | 2.5mm | 5.5mm | 10,12,15,35 |
| M4 | 0.70mm | 3mm | 7mm | 6,10,12,15,20,25,30,35,40 |
| M5 | 0.80mm | 4mm | 8mm | 8,10,12,16,20,25,30,35,40,45,50,55,70 |
| M6 | 1.00mm | 5mm | 10mm | 8,10,12,15,20,22,25,28,30,35,40,45,50,55,60,65,70,75,80,85,90,95,100 |
| M7 | 1.00mm | 5mm | 10mm | 20 |
| M8 | 1.25mm | 6mm | 12.5mm | 15,20,25,30,35,40,45,50,55,60,65,70,80,85 |
| M10 | 1.5mm | 8mm | 16mm | 20,25,30,35,40,45,50,55,65,70,80 |
| M10 | 1.25mm | 8mm | 16mm | 20,25,30,35,40,45,50,55,60,65,70,75,80,85 |
About delivery
Generally Speaking, delivery time for the Titanium bolt is 7-15 days, because we have stocks in ready and for special sizes or surface or grade, we can finish the production within 20 days.
Packaging details
1.Regular packing：Bulk in bag (25kg/50kg), bulk in carton (20kg/25kg).
2.For large orders, we can design specific sizes of boxes and cartons.
3.Can provide special packings as clients requests.
Q1: What is a Titanium bolt?
A1: A titanium bolt is a high-performance fastener made from titanium or its alloys. It is known for being lightweight (about 40% lighter than steel), extremely strong, and highly resistant to corrosion.
Q2: What are the main benefits?
A2: Key benefits include: high strength-to-weight ratio, excellent corrosion resistance (especially in seawater and chemicals), non-magnetic properties, and good performance in extreme temperatures.
Q3: Where are they commonly used?
A3: Titanium bolts are essential in demanding industries like aerospace, marine engineering, chemical processing, medical devices, automotive racing, and high-end sports equipment.
Q4: How strong are titanium bolts?
A4: Strength varies by grade. For example, Grade 2 offers about 500 MPa tensile strength, while Grade 5 (Ti-6Al-4V) offers around 900-1000 MPa, comparable to many high-strength steels.
Q5: Are they expensive?
A5: Yes, initial material and manufacturing costs are higher than steel or stainless steel bolts. However, their long lifespan, reduced maintenance, and reliability in critical applications can offer a lower total cost of ownership.
Q6: What precautions are needed during installation?
A6: Use proper torque values and always apply an anti-galling lubricant. Titanium can gall (cold-weld) to itself and other metals when tightened dry, which can seize the bolt.
Q7: Can they be surface treated?
A7: Yes. Anodizing is very common, creating a durable oxide layer that can be colored (e.g., gold, blue, purple) for part identification or aesthetics, and also enhances corrosion resistance.
Q8: How do I choose the right titanium bolt?
A8: Consider: 1) Environment (chemical exposure, salinity, temperature), 2) Required Strength, 3) Compliance with industry standards, and 4) Budget. Grade 5 is the general-purpose high-strength choice.
Need Help Selecting a Bolt?
Contact our experts with your application details for a tailored recommendation.
