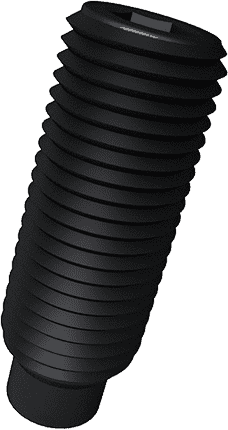

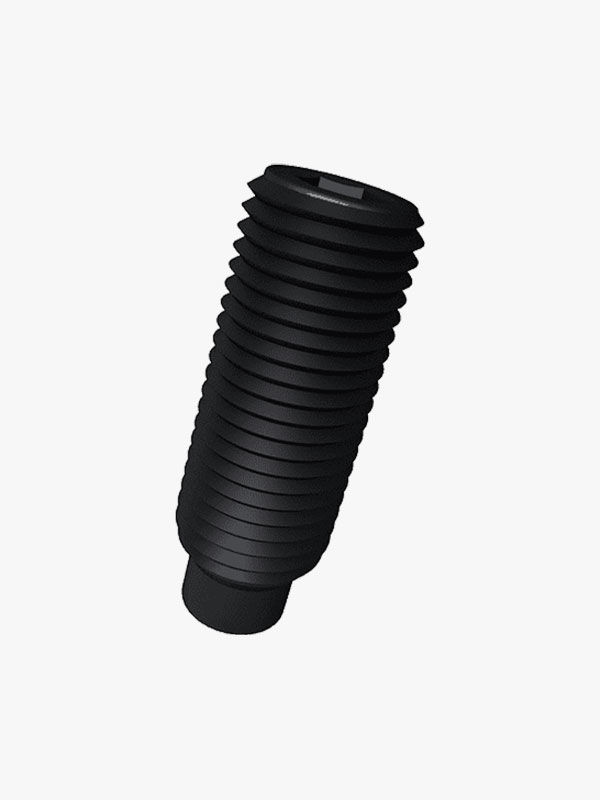

Socket Set Screws
UNI 5925 - DIN 915 - ISO 4028

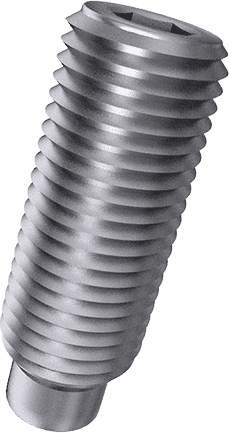

Plain
Black Oxide

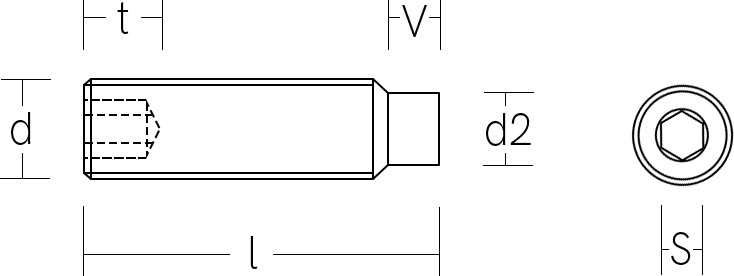

| d | M1.6 | M2 | M2.5 | M3 | M4 |
| S | 0.7 | 0.9 | 1.3 | 1.5 | 2 |
| vmin.a | 0.4 | 0.5 | 0.63 | 0.75 | 1 |
| vmin.b | 0.8 | 1 | 1.25 | 1.5 | 2 |
| d2 | 0.8 | 1 | 1.5 | 2 | 2.5 |
| tmin.a | 0.7 | 0.8 | 1.2 | 1.2 | 1.5 |
| tmin.b | 1.5 | 1.7 | 2 | 2 | 2.5 |
| M5 | M6 | M8 | M10 | M12 | M14 | M16 |
| 2.5 | 3 | 4 | 5 | 6 | 6 | 8 |
| 1.25 | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 |
| 2.5 | 3 | 4 | 5 | 6 | 7 | 8 |
| 3.5 | 4 | 5.5 | 7 | 8.5 | 10 | 12 |
| 2 | 2 | 3 | 4 | 4.8 | 5.6 | 6.4 |
| 3 | 3.5 | 5 | 6 | 8 | 9 | 10 |
| M18 | M20 | M22 | M24 | M27 | M30 | M33 |
| 10 | 10 | 12 | 12 | - | - | - |
| 4.5 | 5 | 5.5 | 6 | - | - | - |
| 9 | 10 | 11 | 12 | - | - | - |
| 13 | 15 | 17 | 18 | - | - | - |
| 7.2 | 8 | 9 | 10 | - | - | - |
| 11 | 12 | 13.5 | 15 | - | - | - |
| M36 | M39 | M42 | M45 | M48 | M52 | M56 |
| - | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| - | - | - | - | - | - | - |
| Thread Size | M3 | 5# | 1/8” | M4 | |
|---|---|---|---|---|---|
| Diameter | 3 | 3.175 | 3.175 | 4 | |
| UNC | - | 40 | 40 | - | |
| UNF | - | 44 | 44 | - | |
| Coarse Pitch | 0.5 | 0.635 | 0.635 | 0.7 | |
| Fine Pitch | 0.35 | 0.5773 | 0.5773 | 0.5 | |
| #8 | 3/16” | 10# | M5 | M6 | 1/4“ |
| 4.1656 | 4.7625 | 4.826 | 5 | 6 | 6.35 |
| 32 | 24 | 24 | - | - | 20 |
| 36 | 32 | 32 | - | 6 | 28 |
| 0.7938 | 1.0583 | 1.0583 | 0.8 | 1 | 1.27 |
| 0.7056 | 0.7938 | 0.7938 | 0.5 | 0.5 | 0.9071 |
| 1/4“ | 5/16” | 5/16” | M8 | 3/8” | 3/8” |
| 6.35 | 7.9375 | 7.9375 | 8 | 9.525 | 9.525 |
| 20 | 18 | 18 | - | 16 | 16 |
| 26 | 24 | 22 | - | 24 | 20 |
| 1.27 | 1.4111 | 1.4111 | 1.25 | 1.5875 | 1.5875 |
| 0.9769 | 1.0583 | 1.1545 | 1 | 1.0583 | 1.27 |
| M10 | 7/16” | 7/16” | M12 | 1/2” | 1/2” |
| 10 | 11.1125 | 11.1125 | 12 | 12.7 | 12.7 |
| - | 14 | 14 | - | 13 | 13 |
| - | 20 | 18 | - | 20 | 18 |
| 1.5 | 1.8143 | 1.8143 | 1.75 | 1.9538 | 1.9538 |
| 1 | 1.27 | 1.4111 | 1.5/1 | 1.27 | 1.4111 |
| M14 | 9/16” | 9/16” | 5/8” | 5/8” | M16 |
| 14 | 14.2875 | 14.2875 | 15.875 | 15.875 | 16 |
| - | 12 | 12 | 11 | 11 | - |
| - | 18 | 16 | 18 | 14 | - |
| 2 | 2.1167 | 2.1167 | 2.3091 | 2.3091 | 2 |
| 1.5 | 1.4111 | 1.5875 | 1.4111 | 1.8143 | 1.5 |
| M18 | 3/4” | 3/4” | M20 | M22 | 7/8” |
| 18 | 19.05 | 19.05 | 20 | 22 | 22.225 |
| - | 10 | 10 | - | - | 9 |
| - | 16 | 16 | - | - | 14 |
| 2.5 | 2.54 | 2.54 | 2.5 | 2.5 | 2.8222 |
| 2 | 1.5875 | 1.5875 | 2/1.5 | 2 | 1.8143 |
| 7/8” | M24 | 1” | 1” | |
| 22.225 | 24 | 25.4 | 25.4 | |
| 9 | - | 8 | 8 | |
| 11 | - | 12 | 10 | |
| 2.8222 | 3 | 3.175 | 3.175 | |
| 2.3091 | 2/1.5 | 1.1167 | 2.54 |
